TG108 Aluminum Fully Concealed Narrow Sliding Window

REF: TG108SL

TEGOOD Aluminum Narrow Sliding Windows are designed with minimalism; this window seamlessly blends into the space while offering smooth, noiseless sliding and enhanced energy efficiency. Enjoy unobstructed views and modern aesthetics with our innovative design.

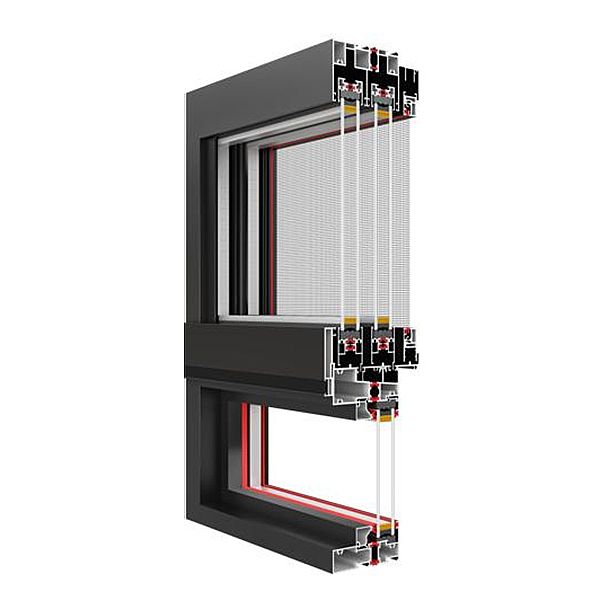

·Fully embedded frame sash design, with window sashes completely concealed within the frames. Locks are installed on the overlapping sides of the two sashes, creating a visually appealing double-sash overlap position.
·Comprehensive sealing brush strip design at the overlapping area of the entire window, providing effective sealing against water, wind, and noise
·Super-thick bottom horizontal sealing, fitted in the bottom track brush strip groove, achieving unique and enhanced window sealing.

Delivery Schedule & Costs:

  • Depending on the country, contact us for more details

Payment Methods:

  • Bank Transfer to IBAN Account (we can develop a payment schedule)

Minimum Order Quantity (MOQ):

  • Contact us for more details

Wholesale Enquiry

.

FEATURES

Why you will love TEGOOD Sliding Window

√Sleek and Discreet
Our Fully Concealed Narrow Sliding Window features a sleek and discreet design with slim frames and concealed hardware.

√Effortless Gliding
Experience smooth and silent operation with our precision-engineered sliding mechanism. Effortlessly slide the window open or closed with ease, enhancing user comfort.

√Energy Efficiency
The insulated frames and energy-efficient glazing help maintain indoor temperatures and reduce energy consumption.

√Enhanced Security
Our Fully Concealed Narrow Sliding Window is engineered with hidden locking systems.

√Low Maintenance
Aluminum is inherently low maintenance, offering exceptional durability and resistance to weathering, rust, and corrosion.

Profile: TG108-T5 thermal break aluminum
System: 108 series thermal break aluminum
Hardness: 6063-T5 level material (6061 grade is also available)
Thickness:1.6mm-2.5mm
Frame width:108mm
Insulation Strip: PA66-GF25-S14.8
Visible Surface Frame: edge sealing:40.2mm locking position:34mm Top
Track:73mm Bottom Track:91mm Center Mullion 28mm
Water Tightness: Level 5
Air Tightness: Level 6
Wind Resistance: Level 9
Sound Insulation: Level 3(Depends on the glass configuration)
Thermal insulation:Level 5(Depends on the glass configuration)

DESIGN OPTIONS
Finish:
The high-quality Finish is carefully curated to complement the design vision. From classic to contemporary, our Finish adds a touch of elegance and sophistication to any space. Our expertly applied Finish enhances the appearance of windows and doors and provides excellent resistance to weathering, ensuring long-lasting durability.

Glass:
TEGOOD TG108 sliding windows are available with double-pane glass. The glass offers a host of benefits that contribute to a more comfortable,  energy-efficient, and environmentally friendly. Contact a TEGOOD expert for more glass design.

Hardware:
TEGOOD windows are equipped with premium hardware, ensuring smooth and effortless operation. The sliding functionality offers versatile ventilation options and ease of cleaning. Choose from various high-quality hardware options to complement the aluminum sliding windows. From stylish handles and locks to hinges and stays, our hardware collection offers functionality and visual appeal.

Screens:
The standard configuration includes PET high-definition mesh, and the optional configuration includes diamond mesh.

Grides:
TEGOOD aluminum sliding windows come with the option to add grilles into the glasses, which are not only decorative but also functional. Grilles are horizontal or vertical bars that divide the window into smaller panes, giving it a classic and elegant appearance.

Profiles Choices

You can choose suitable profiles for this product, and good profiles can make the product stronger and more durable.
