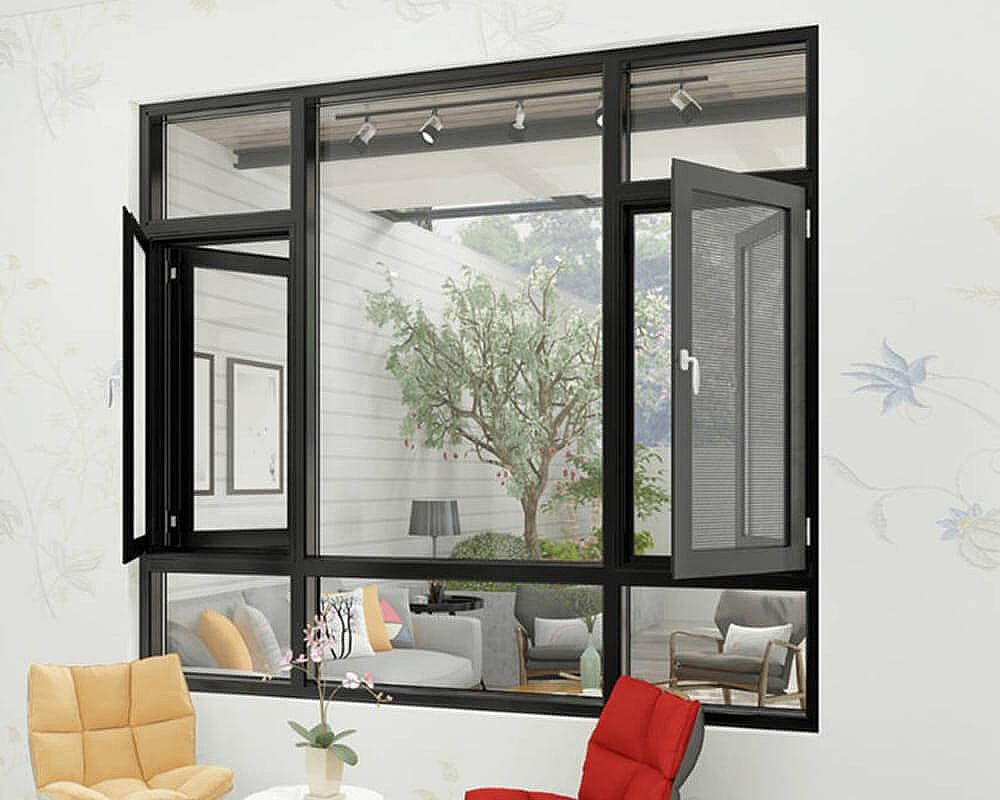

TG108 Aluminum Tilt and Turn Window

FEATURES

Why you will love TEGOOD Tilt and Turn Window

√Innovative Tilt and Turn Functionality
The tilt position allows for secure ventilation, enabling fresh air to circulate while maintaining high safety and security. In the turn position, the window opens fully for easy cleaning, maximum airflow, and emergency egress if required.

√High-Quality Aluminum System
Our aluminum tilt and turn windows are constructed using premium-grade thermal broken aluminum, known for its durability, strength, and resistance to corrosion. The sturdy aluminum profiles provide exceptional structural integrity, ensuring longevity and minimal maintenance requirements.

√Energy Efficiency and Insulation
The multi-chambered design and thermal break technology help minimize heat transfer, keeping the indoor spaces comfortable year-round while reducing energy consumption.

√Customizable Options
We understand the importance of customization to meet specific project requirements. Our aluminum tilt-and-turn windows offer many options to match your design preferences. Choose from various colors, Finish, hardware styles, and accessories.

√Enhanced Security Features
Our aluminum tilt-and-turn windows have advanced locking systems and robust hardware.

System: 108 series thermal break aluminum
Hardness: 6063-T5 level material (6061 grade is also available)
Thickness:1.8mm(localized lining steel of 2mm)
Frame width: 108.2mm
Insulation Strip: PA66-GF25-S24
(high-performance multi-chambered insulation strip
insulation chambers being standardly filled with polyurethane foam)
Visible Surface Frame: Outer frame-38mm, inward-opening sash-48.5mm
Drainage System: Bright drainage
Water Tightness: Level 6
Air Tightness: Level 8
Wind Resistance: Level 9
Sound Insulation: Level 3(Depends on the glass configuration)
thermal insulation:Level 6(Depends on the glass configuration)

DESIGN OPTIONS
Finish:
The high-quality Finish is carefully curated to complement the design vision. From classic to contemporary, our Finish adds a touch of elegance and sophistication to any space. Our expertly applied Finish enhances the appearance of windows and doors and provides excellent resistance to weathering, ensuring long-lasting durability.

Glass:
TEGOOD TG108 windows are available with Insulating glass(triple pane, four pane&Five pane) and Laminated glass. The glass offers a host of benefits that contribute to a more comfortable,  energy-efficient, and environmentally friendly. Contact a TEGOOD expert for more glass design.

Hardware:
TEGOOD windows are equipped with premium hardware, ensuring smooth and effortless operation. The tilt-and-turn functionality offers versatile ventilation options and ease of cleaning. Choose from various high-quality hardware options to complement the aluminum tilt-and-turn windows. From stylish handles and locks to hinges and stays, our hardware collection offers functionality and visual appeal.

Screens:
Standard with high-transparency diamond mesh, optional with diamond mesh

Grides:
TEGOOD aluminum tilt and turn windows come with the option to add grilles into the glasses, which are not only decorative but also functional. Grilles are horizontal or vertical bars that divide the window into smaller panes, giving it a classic and elegant appearance.

Profiles Choices

You can choose suitable profiles for this product, and good profiles can make the product stronger and more durable.
