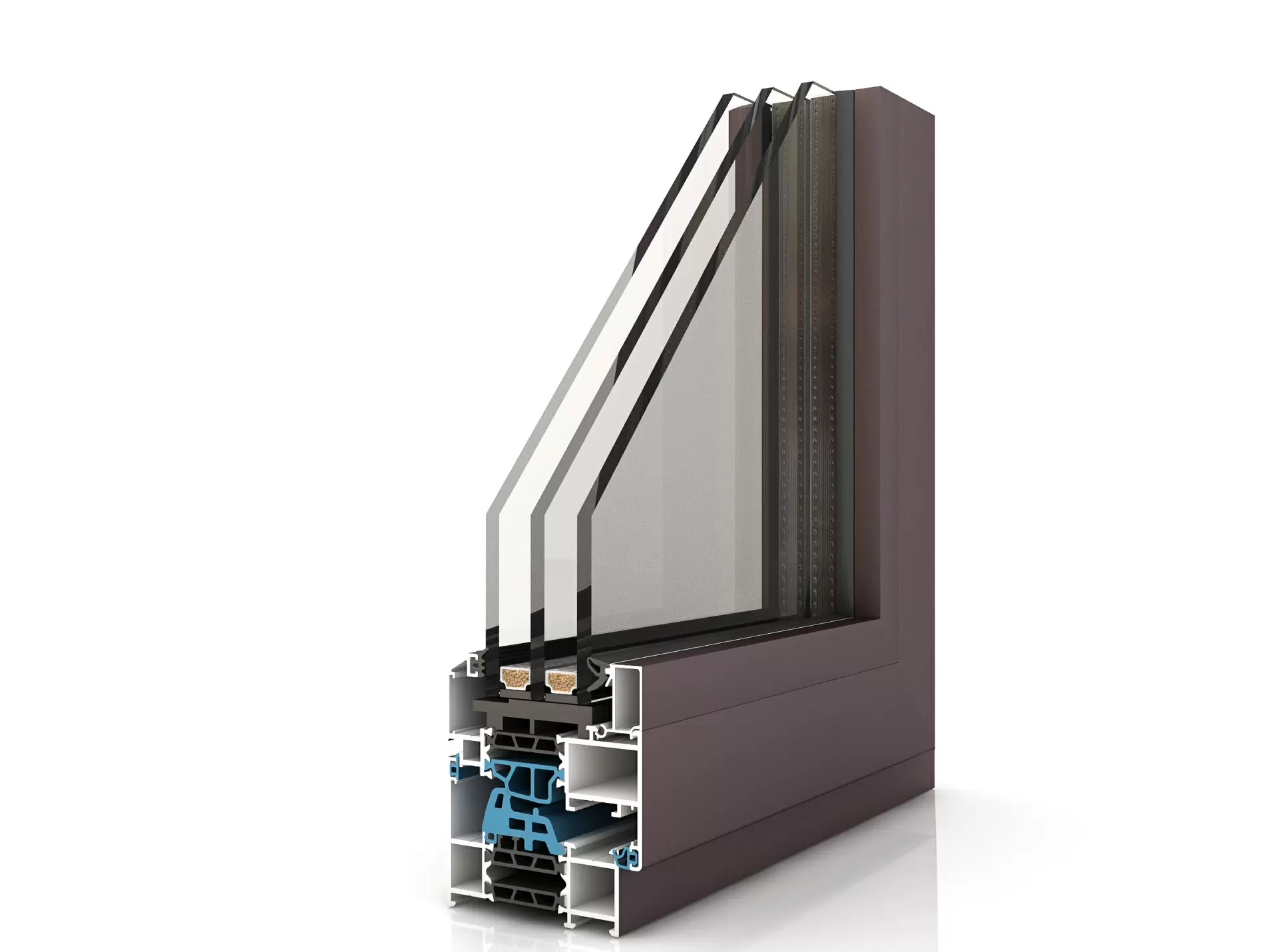

PRO LWD575W/A/F Aluminum window and doors profile

Frame material: Thermal Break Aluminum
Wall thickness: 1.8mm
Insulation strip material: PA66+GF25
Frame thickness:75mm
Opening Pattern: tilt and turn
Surface treatment: Power Coating
Sealing System:3 EPDM
Glass: 6GLow-e+14A+6G+14A+6G
Water Tightness: Level 6
Air Tightness: Level 8
Wind Resistance: Level 9
Sound Insulation: 38db

Contact Us

List of Products using this Profile

French fixed window

French fixed window

Aluminum-fixed windows cannot be opened. Generally, there is no window sash, and only the glass can be fixed on the window frame. Sometimes to produce the same facade effect as other windows, sashes are also installed, but the sashes are fixed on the window frame. Aluminum-fixed windows are only used for lighting and viewing purposes. Aluminum fixed windows are usually used on occasions where only lighting is considered but ventilation is not considered. As the aluminum fixed window sash is fixed, the glass area can be slightly larger. They can be almost any shape, including square, rectangle, arch, circle, triangle, or a combination of these options.

Learn more..
French casement windows

French casement windows

French doors and windows inherit the style of Italian doors and windows and have made a lot of technical improvements to Italian doors and windows, focusing on extending the anti-aging time of materials, highlighting the improvement of wind pressure resistance, improving the low-temperature impact resistance of profiles, and focusing on improving sealing, heat preservation, heat insulation, sound insulation, and noise reduction performance

Learn more..
French tilt and turn windows

French tilt and turn windows

French doors and windows inherit the style of Italian doors and windows and have made a lot of technical improvements to Italian doors and windows, focusing on extending the anti-aging time of materials, highlighting the improvement of wind pressure resistance, improving the low-temperature impact resistance of profiles, and focusing on improving sealing, heat preservation, heat insulation, sound insulation, and noise reduction performance

Learn more..
